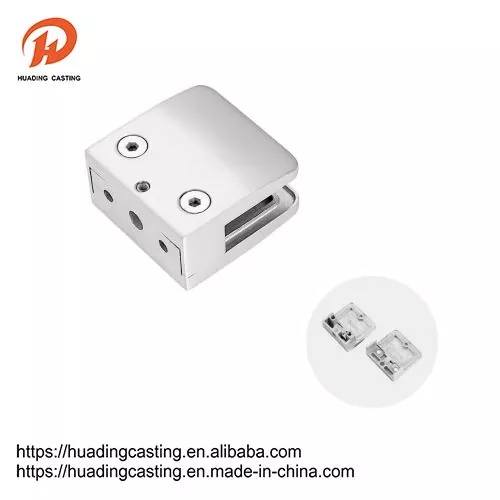

304 316 Stainless Steel Square Glass Clamp Balustrade Clamp

The following are characteristics and uses of the 304 316 stainless steel square glass clamp balustrade clamp:

Material: 304 stainless steel has good corrosion resistance and wear resistance, and can maintain stable performance for a long time.

Durable: The design is reasonable and can withstand a certain weight and pressure to ensure the safe fixation of the glass.

Easy to install: Generally, screws are used for installation, which is simple and quick to operate.

Product Parameter

The 304 316 stainless steel square glass clamp balustrade clamp consists of:

1 x Secure Pin

2 x Rubber Gaskets

2 x Glass side plate securing screws/ Mounting shape.

304 316 stainless steel square glass clamp balustrade clamp Assembly Guide

Recommended positions for fixing glass clamps.

150mm max from fioor to the centre of the Glass Clamp, or 75mm from the bottom of the glass to the centre of the Glass Clamp.

75mm from the top of the glass to the centre of the Glass Clamp.

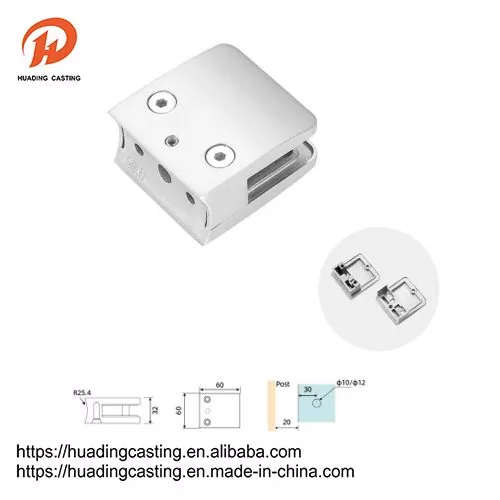

The secure pin can be removed if using with glass with no holes drilled. lf using holes to secure the glass the holes need to be as follows

12mm wide holes reguired

Holes need to be located 26.5mm from the edge of the glass

Glass will need to be 20mm from wall or post

Uses:

Bathroom partition: It is used to fix the bathroom glass partition to make the bathroom space more private and independent.

Railing accessories: Installed on the railing to support and fix the glass, increasing the aesthetics and safety of the railing.

Glass fixation:Suitable for various occasions that require the fixation of glass, such as windows, doors, etc
