1203 High Production Carding System

1203 Type Mixing Ring Self Leveler uses a computer to control the feeding roller speed by detecting the thickness of the feeding cotton layer and the output cotton sliver thickness, achieving long and short segment leveling and improving the uniformity of the cotton sliver.

Send Inquiry

Product Description

Name:1203 High Production Carding System

MOQ: 1 pcs

Package:sea-worthy pallet transportation

Shipment: LCL，Container by sea etc.

Time:Strict quality control, on-time delivery

Service:Wide material selection for custom parts

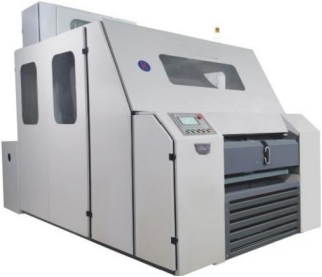

1203 High Production Carding System

The 1203 High Production Carding System is a state-of-the-art carding machine engineered for modern spinning mills that demand high throughput and premium fiber processing. As the "heart" of the spinning preparation line, this system excels in opening, cleaning, combing, and aligning cotton and synthetic fibers. By integrating advanced mechanical design with intelligent automation, the 1203 model significantly boosts production efficiency, reduces energy consumption, and delivers highly uniform sliver for downstream drawing and roving processes.

Key Features & Advantages:

1. Exceptional Production Capacity Optimized Doffer & Licker-in: Features an enlarged working width and high-speed doffer mechanism, allowing for continuous and rapid web stripping. This enables massive increases in hourly output compared to traditional models without sacrificing fiber integrity.Continuous Operation: Designed for uninterrupted running, minimizing downtime and maximizing overall equipment effectiveness.

2. Superior Fiber Quality & Gentle Handling Precision Combing Zone: Utilizes an optimized configuration of cylinder flats and precise grinding angles to ensure thorough individualization of fibers. It effectively removes neps, micro-dust, and short fibers while keeping long fibers intact.Gentle Transfer Mechanism: Advanced transfer rollers between the licker-in, cylinder, and doffer minimize fiber damage and hook formation, resulting in smoother yarn strength and better fabric appearance.

3. Intelligent Automation & Control Smart Monitoring System: Equipped with an intuitive Human-Machine Interface touch screen that provides real-time monitoring of motor loads, production speeds, and fault diagnostics.Auto-Grinding Technology: Features automatic flat clothing grinding to maintain peak carding sharpness consistently, ensuring stable sliver weight and reducing manual labor requirements.

4. Versatility & Material Adaptability Wide Processing Range: Highly adaptable for various raw materials, including pure cotton, viscose, polyester, and blended fibers. Quick-change parts allow operators to switch between different fiber types efficiently.

5. Energy Efficiency & Low Maintenance Aerodynamic Design: Improved suction and airflow systems reduce waste extraction power consumption.Modular Structure: Easy-to-access covers and self-lubricating bearings simplify daily maintenance and extend the service life of critical components.

key technologies
