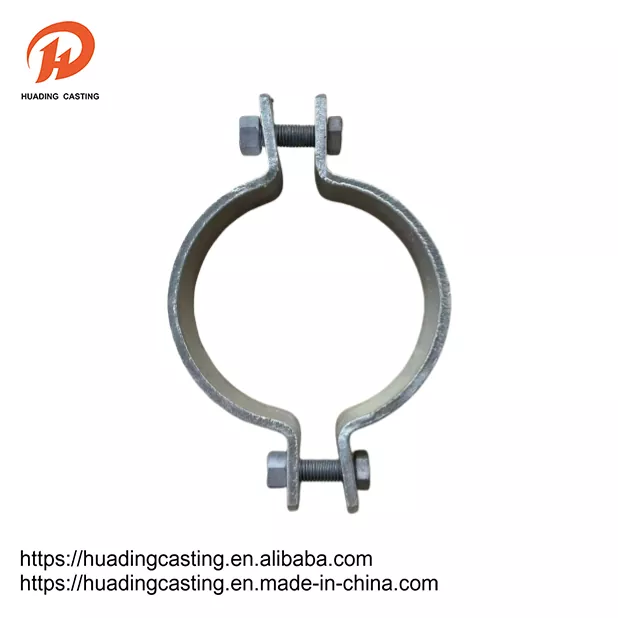

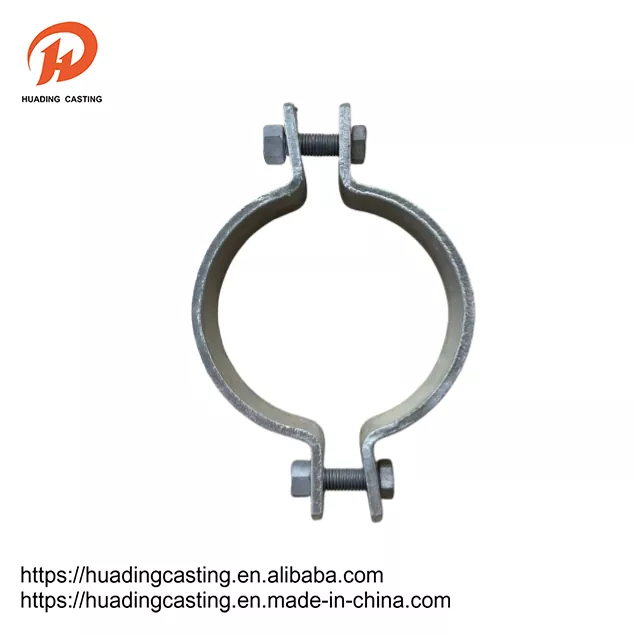

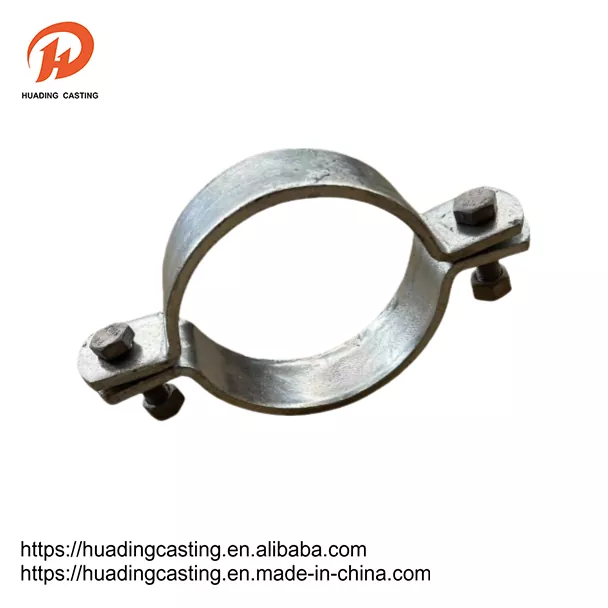

Pole Clamp

Pole clamps are used on low-voltage poles as connections between the poles and other components and are necessary for the installation and proper use of low-voltage poles. According to the customer's requirements, the cluster base can be protected by tinning or hot-dip galvanizing.

Send Inquiry

Product Description

Pole clamp Advantage

Absorb shock and vibration, reduce unnecessary noise. Suitable for any standard pillar channel. Interlocking edges and channel positioning legs help ensure the cushioning stays in place.

A: Has a unique "thumb drive" that provides the installer with a pinch point to easily open the cushion with the help of a lever TAB and a live hinge. Installation is simple and effortless.

B: Automatic alignment

The cushion can be opened and placed on a pipe or tube and rotated into place on the channel and automatically aligned with the channel opening, ready for clamping. No more pre-mounting pads or awkward installation. Seat cushion replacement has become simple and easy.

C: Pressure control

The buffer has a built-in squeeze control as part of the buffer design. Side openings and squeeze control tabs provide even distribution of pressure around。

D: Complete clamping unit

This is the only strut mounting pad that is mechanically attached to the support steel clamp, as the bolt is formed by squeezing the control tab to form a single unit connection. This design helps prevent excessive vibration of the cushion, which is directly connected to the fixture.

MATERIAL	Hot Dipped Galvanized Carbon steel
MAX TEMP	450F(232C)
COMPLIANCE	Federal Specification A-A-1192A (Type 4), ANSI/MSS SP-58 (Type 4)
NOTE	Distance between clamp ears beneath pipe may or may not be equal to upper gap
