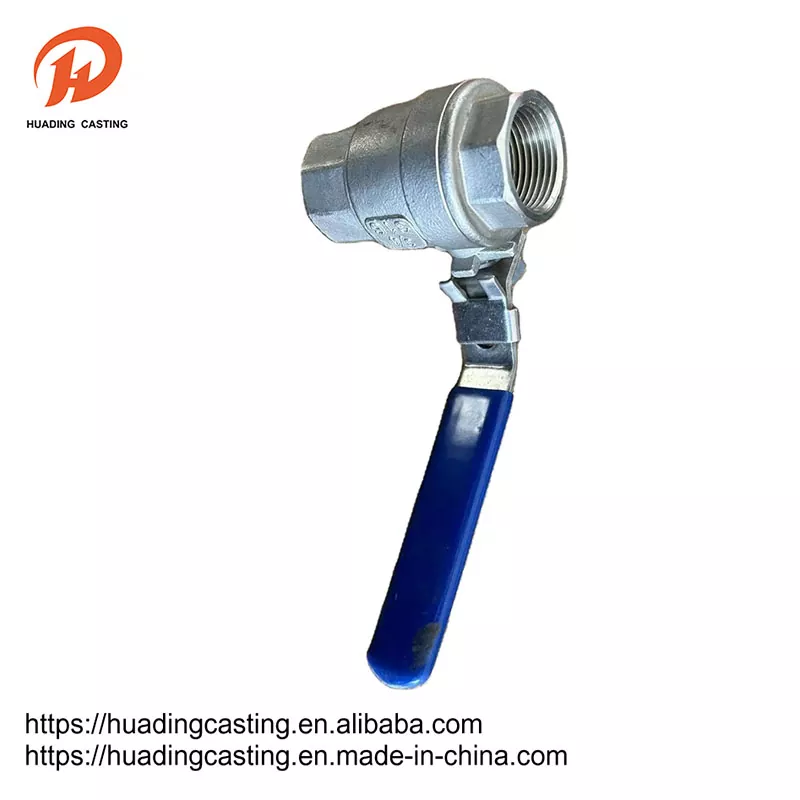

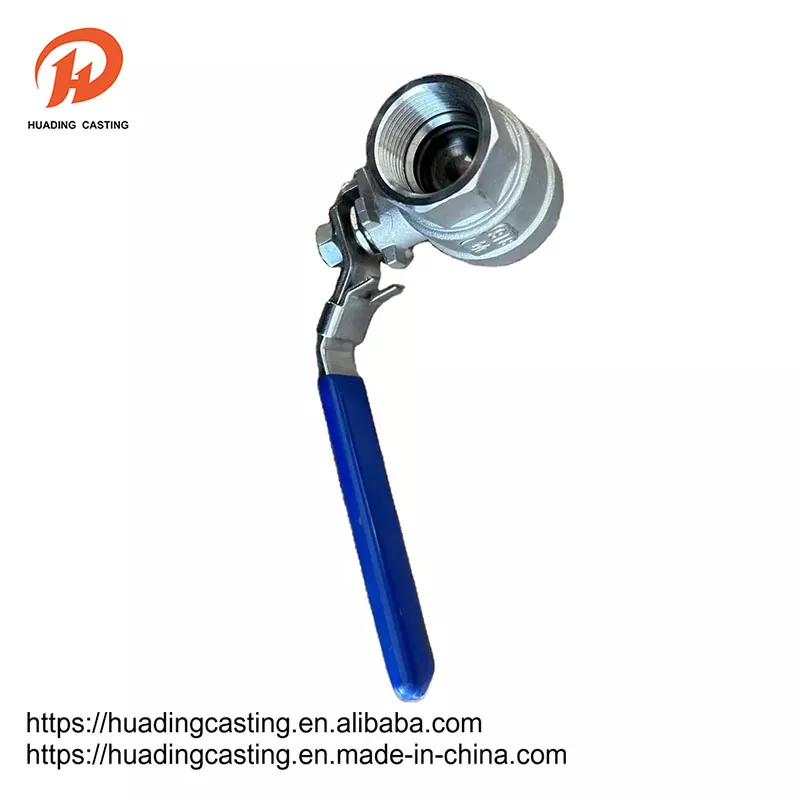

304 Stainless Steel Ball Valve

Quality Materials: The 304 stainless steel ball valve is made of high quality 304 stainless steel, lead free, Safer and stronger, long lifetime. It is the ideal plug valve for high quality shut- off valves in industry or in the home and garden.

Suitable for a variety of media: The 304 stainless steel ball valve is suitable for water, sea water, air, oil, and steam media with a temperature of -10 ℃～150℃.Since the ball valve has wiping properties during opening and closing, it can be used in media with suspended solid particles.

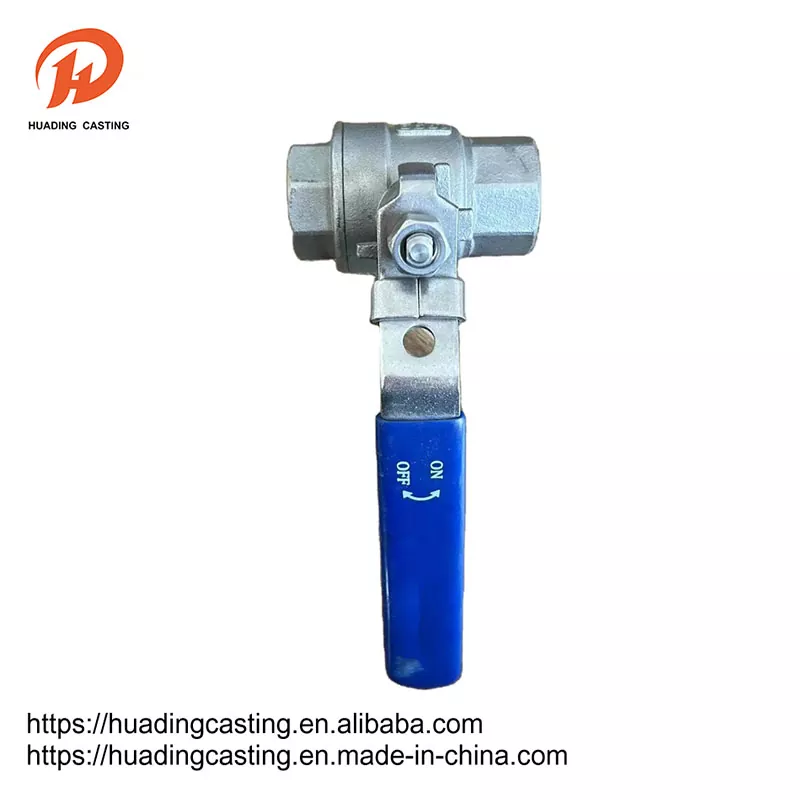

Convenient operation: The 304 stainless steel ball valve has a comfortable operating handle, which opens and closes quickly. It only needs to rotate 90° from fully open to fully closed, which is convenient for quick control. When the handle is parallel to the pipe body, it is in an open state, and when it is vertical, it is in a closed state, so it is more convenient to observe whether the valve is open.

Good sealing: The 304 stainless steel ball valve has two sealing surfaces with good sealing performance and can achieve complete sealing. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.

Widely used: The 304 stainless steel ball vavle is widely used in gardens, water pumps, corner rainwater tanks, external taps, rainwater connections with buckets, rainwater collectors, water pipes, etc. Also can be used for mechanical equipment, industrial equipment, water supply and drainage equipment.

• S.S. 304 investment casting body

• Working Pressure of 1,000 PSI (WOG)

• Minimal pressure drop due to large full-size ports

• Suitable for full range of liquids and gas

• Temperature range: -40 to 400 Degrees F

• Low operation torque

• 100% individually tested

• Blowout-proof stem

• NPT threaded ends to ANSI B1.20.1

• Heavy duty locking handles with blue vinyl insulator
