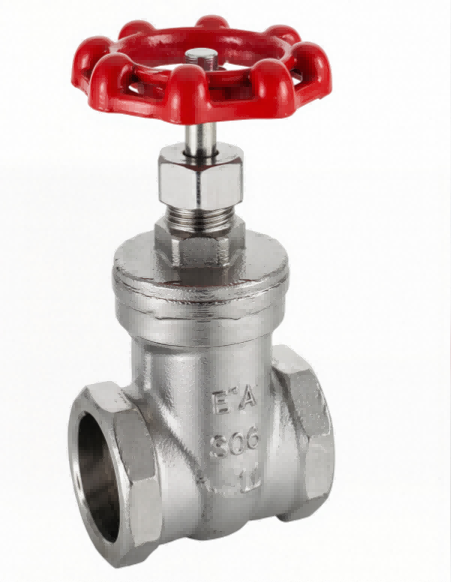

Casting Threaded Gate Valve

Name: Casting Threaded Gate Valve

Material: 304 Stainless Steel

MOQ: 10 pcs

Package: Inner packing of thickened bubble bag and outer packing of carton, Or sea-worthy pallet transportation

Shipment: DHL, UPS, FedEx, LCL by sea etc.

Tolerance:Precision CNC machining, tolerance ±0.01mm

Inspection:German CMM full inspection, zero defect

OEM & ODM: OEM & ODM accepted, fast sample making

Time:Strict quality control, on-time delivery

Service:Wide material selection for custom parts

A threaded gate valve, also known as a screwed gate valve, is a type of linear motion valve used to start or stop the flow of fluid in a piping system. It features a gate (or wedge) that moves perpendicular to the flow direction, allowing for full opening or full closing—not suitable for throttling or flow regulation. The valve connects to the pipeline via internal threads (female threads), making it ideal for small-diameter piping systems where space is limited.

Commonly used in water supply, oil and gas, chemical processing, and industrial applications, threaded gate valves are valued for their tight shut-off capability, low pressure drop, and compact design. They are available in various materials such as bronze, brass, stainless steel, and carbon steel, depending on the service environment and media compatibility.

Key Features & Advantages

Premium Corrosion-Resistant Materials

Crafted from high-grade Stainless Steel (SS304) or durable bronze, ensuring exceptional durability and longevity even in harsh environments handling water, oil, gas, and corrosive media.

Superior Sealing & Zero Leakage

Features precision-machined sealing surfaces and high-quality packing (PTFE/Graphite), providing a bubble-tight shutoff and reliable performance under high-pressure conditions (up to PN16/Class 80).

Low Flow Resistance & Full Bore Design

The straight-through full bore design minimizes pressure drop and fluid resistance when fully open, ensuring optimal flow efficiency for your piping system.

Compact & Easy Threaded Installation

Designed with standard NPT/BSP/G internal threads, allowing for quick, secure, and space-saving installation in small-diameter pipelines without the need for flanges or welding.

Versatile Industrial Application

Ideal for a wide range of sectors including HVAC, water treatment, chemical processing, and oil & gas, suitable for both low and high-pressure applications.

Durable & Low Maintenance

Built with a robust structure and wear-resistant components, this gate valve offers a long service life with minimal maintenance requirements, reducing your total operational costs

H12 Check Valve technical character

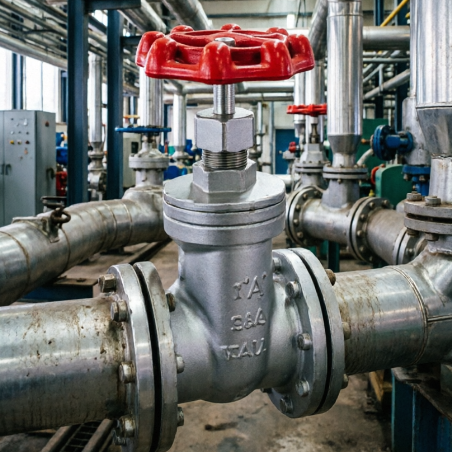

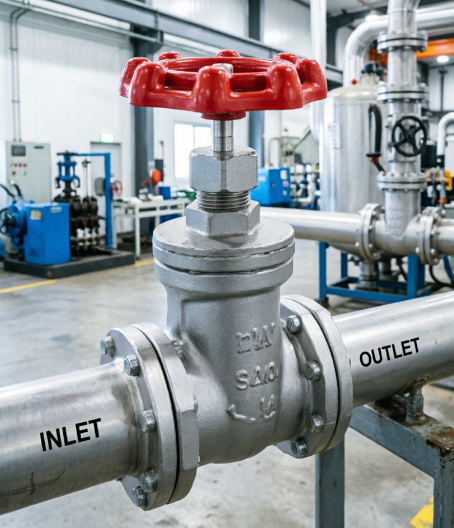

Application scenarios

CERTIFICATION:GB/T 19001-2016/ISO 9001-2015

FAQ

What is your MOQ?

It is according to you, usually it is 1000 units.We accept small quantity.

What is the delivery time for the sample?

It's a according to the sample,usually it is 7 days.

What is the rang of the weight you have casted?

The weight we can cast from 0.007kg to 130kg.

What is your term of payment?

30% prepayment and the remaining 70% against bill of lading for shipment.

Do you provide sample? Free or charge?

Yes, we provide the sample, but the delivery costs and mould costs need to be borne by you.

Are you a manufacturer or a trading company?

We are a professional manufacturer with over 26 years' export experience for designing and producing metal castings.
