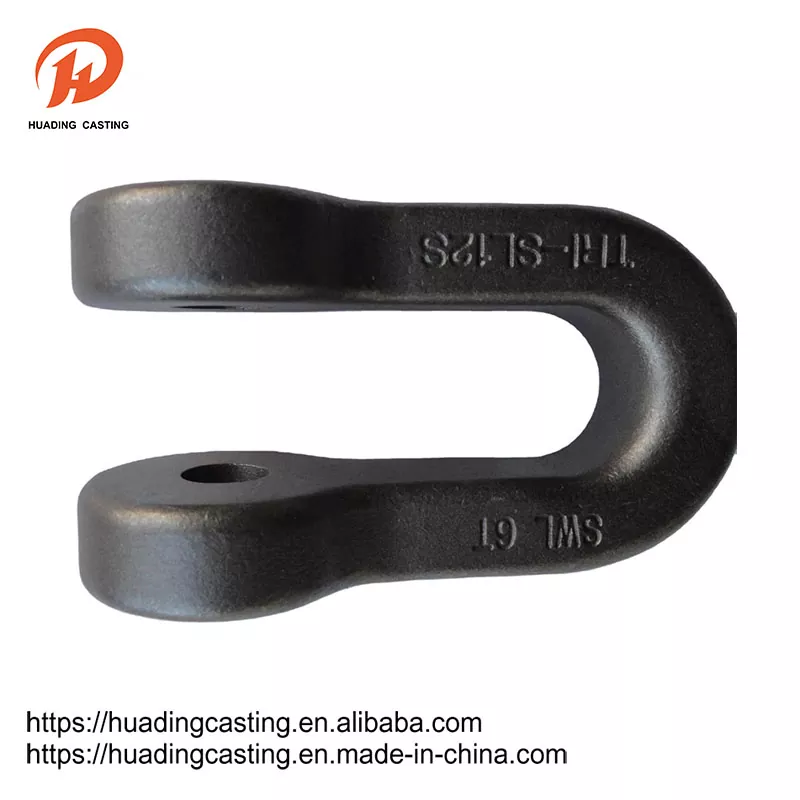

Forging Shackle

Forging shackle is formed by closed die forging, which involves galvanizing and coating powder coatings of different colors. The forging shackle, which features close tolerance holes and concentric pins with good surface finish, has been shown to increase fatigue life in practical use. forging shackle has rated fatigue and rated load. The tolerance between the tight pin and the hole has been shown to be crucial for good fatigue life, especially for screw pin shackles.

Send Inquiry

Product Description

Features:

Forging shackle is widely used in lifting and trailer working conditions

Forging shackle makes it easier to connect to chains, wire ropes, hooks, etc

Forging shackle offers better performance and allows you to choose a variety of sizes according to your daily work

Specifications:
Process: Forging, quenched&tempered

Material: carbon steel/alloy steel
Finish: powder coated/galvanize

Product Parameter

SPECIFICATION FOR Black e-coated chain shackles
CODE	SIZE(INCH)	W.L.L(ton)	WEIGHT(LBS)
MG801	1	2	0.31
MG802	1 1/12	2 2/3	0.33
MG803	2	3 1/3	0.63
MG804	3 1/4	5	1.35
MG805	4 3/4	7	2.35
MG806	6 1/2	9 1/2	3.51
MG807	8 1/2	12 1/2	5.32
MG808	9 1/2	15	7.25
MG809	12	18	9.88
MG810	13 1/2	21	13.25
..	..	..	..
MG817	35	35	45
MG818	55	55	70
MG819	85	85	85.75
MG820	120	120	120
MG821	150	150	153
