High Performance Flanged Ball Valve

Name: High Performance Flanged Ball Valve

Material: 304 Stainless Steel

MOQ: 10 pcs

Package: Inner packing of thickened bubble bag and outer packing of carton, Or sea-worthy pallet transportation

Shipment: DHL, UPS, FedEx, LCL by sea etc.

Tolerance:Precision CNC machining, tolerance ±0.01mm

Inspection:German CMM full inspection, zero defect

OEM & ODM: OEM & ODM accepted, fast sample making

Time:Strict quality control, on-time delivery

Service:Wide material selection for custom parts

GUARANTEE: If not satisfied with product received, just contact us at any time. We will reply you instantly and help you solve the problem.

A Flanged Ball Valve is a high-performance quarter-turn valve designed to control the flow of liquids and gases in industrial piping systems. It features a spherical ball with a central bore, which rotates 90 degrees to open or close the flow path. The valve is equipped with flange ends, allowing for easy, robust, and bolted connection to matching pipeline flanges, ensuring a secure and leak-proof fit.

Key Applications

Flanged ball valves are essential components across a wide range of industries due to their versatility and reliability:

Oil & Gas Industry: Ideal for pipeline isolation, wellhead control, and refinery processes, handling hydrocarbons under high pressure.

Chemical Processing: Perfect for safely controlling corrosive and hazardous fluids thanks to resistant materials like Stainless Steel (CF8/CF8M) and specialized seals (PTFE/PPL).

Water & Wastewater Treatment: Widely used in water distribution networks, filtration systems, and chemical dosing processes.

Power Generation: Crucial for regulating steam, cooling water, and fuel flow in power plants and utility systems.

HVAC & Building Services: Provides reliable flow control and pressure balancing in heating, ventilation, and air conditioning systems.

Key Selling Points

Robust Flange Connection: The flange design ensures a strong, stable, and leak-proof connection to pipelines, making it perfect for high-pressure and large-diameter applications (e.g., ASME Class 150, 300, PN16-PN64).

Quick 90°Operation: Designed for rapid on/off control, allowing operators to open or close the valve with just a quarter-turn, significantly improving operational efficiency.

Minimal Pressure Drop: Featuring a full-port (full bore) design, the valve offers an unobstructed flow path that minimizes fluid resistance and pressure loss, enhancing overall system efficiency.

Superior Sealing & Safety: Equipped with advanced sealing technologies, including fire-safe designs, anti-static devices, and blow-out proof stems, ensuring maximum safety and zero leakage even in extreme conditions.

Easy Maintenance & Installation: The durable two-piece or three-piece body structure allows for easy in-line inspection, repair, and seal replacement without removing the entire valve from the pipeline, reducing downtime and maintenance costs.

Automation Ready: Compatible with pneumatic, electric, or gear actuators (ISO 5211 mounting pad), making it easy to integrate into modern automated control systems for remote operation.

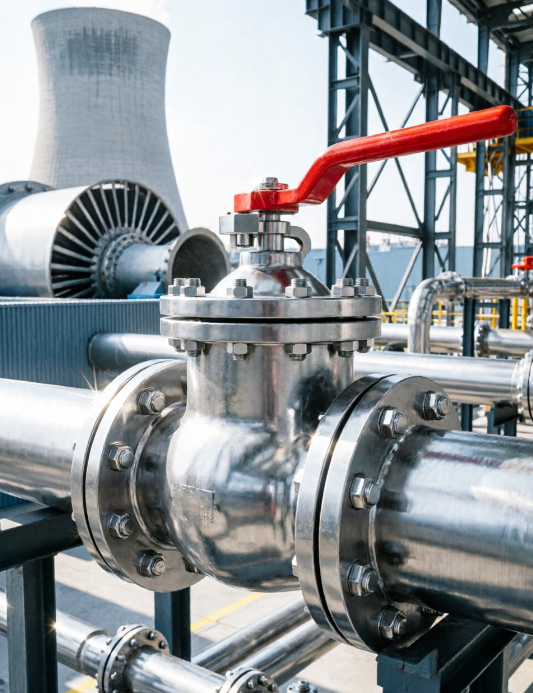

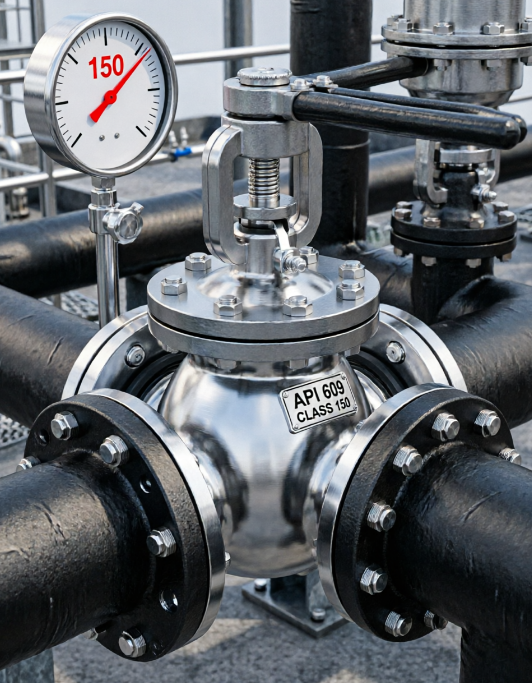

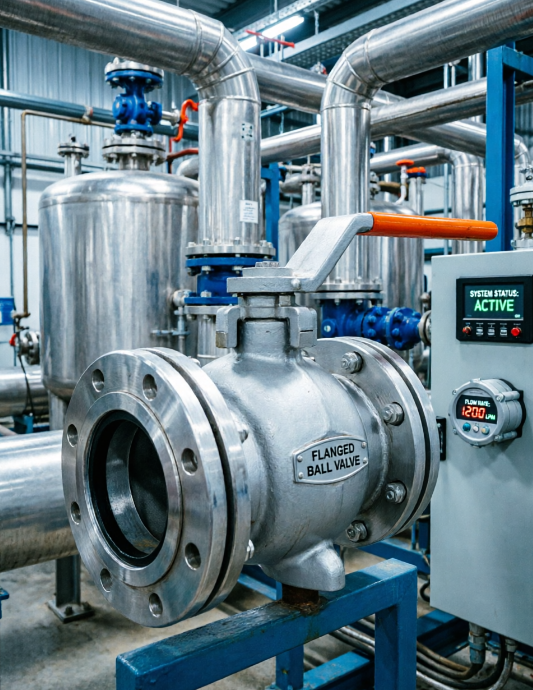

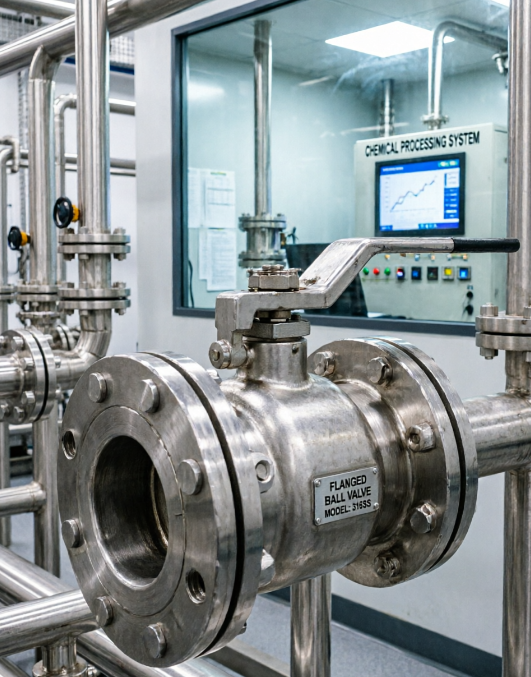

Application scenarios：

CERTIFICATION:GB/T 19001-2016/ISO 9001-2015

FAQ

What is your MOQ?

It is according to you, usually it is 1000 units.We accept small quantity.

What is the delivery time for the sample?

It's a according to the sample,usually it is 7 days.

What is the rang of the weight you have casted?

The weight we can cast from 0.007kg to 130kg.

What is your term of payment?

30% prepayment and the remaining 70% against bill of lading for shipment.

Do you provide sample? Free or charge?

Yes, we provide the sample, but the delivery costs and mould costs need to be borne by you.

Are you a manufacturer or a trading company?

We are a professional manufacturer with over 26 years' export experience for designing and producing metal castings.
