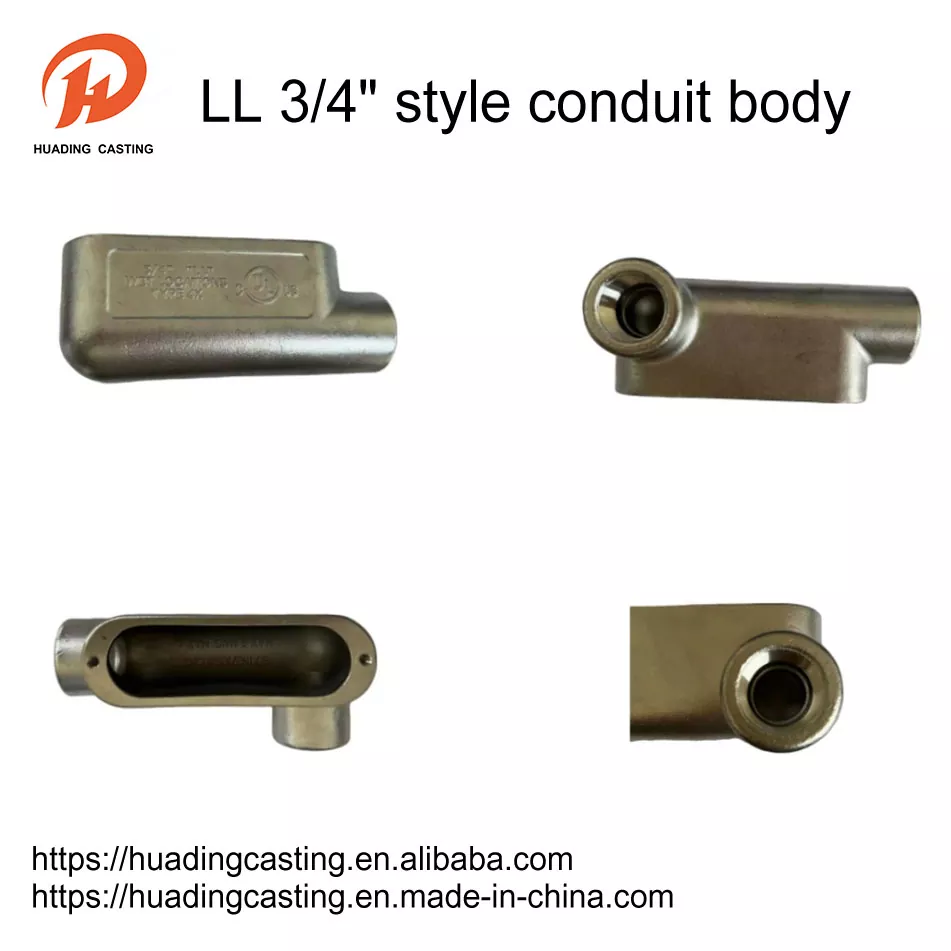

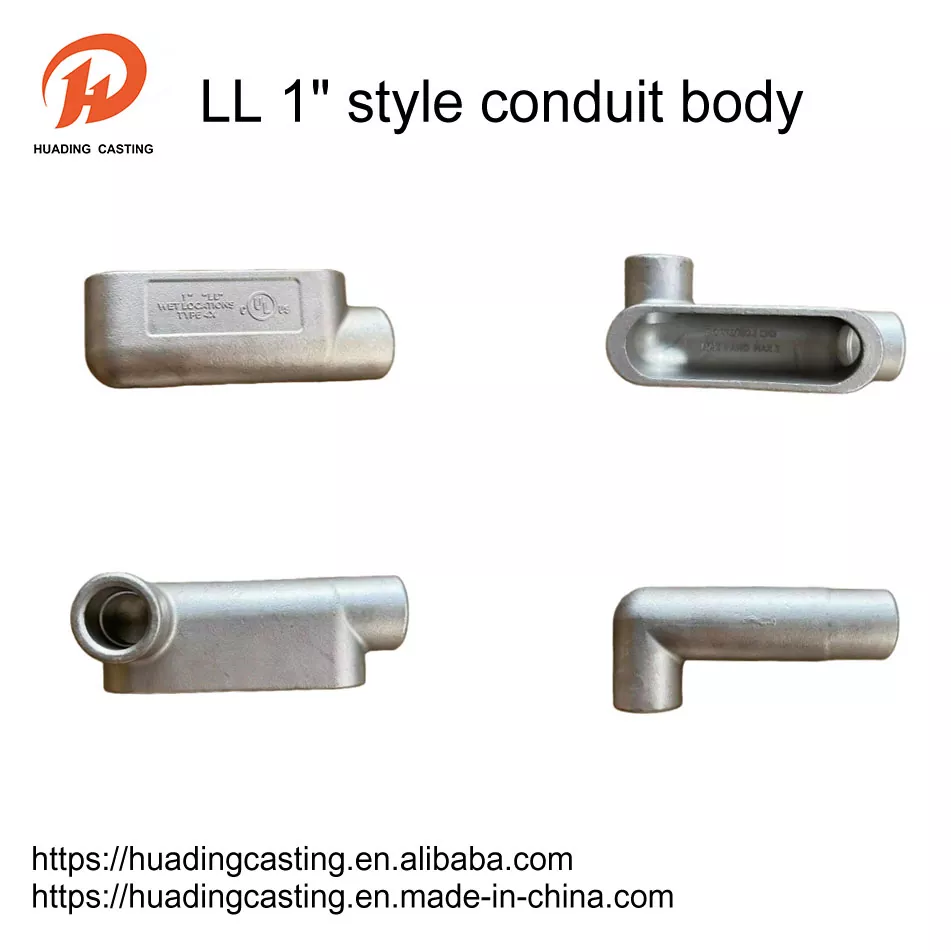

LL Style Conduit Body

LL style conduit body serves as connectors for threaded conduits whenever the electrical pathway alters its direction. They feature detachable gasket covers that ensure a waterproof seal and facilitate effortless access for wire installation, inspection, and routine maintenance. These conduit bodies can house pipes ranging in diameter from 3/4" to 2" and are constructed from AISI316L stainless steel.

Send Inquiry

Product Description

Application:

LL style conduit body is utilized to connect with threaded rigid or EMT conduits whenever a directional change is necessary. They feature a removable cover and gasket, facilitating easy wire pulling. These bodies are frequently employed as cost-effective convenience boxes when additional space for wires is required.

Advantages:

LL style conduit bodies offer time and cost savings by avoiding the need for expensive bending of large conduits to alter their direction. They enable installers to effortlessly form smooth bends in wires. With a powder-coated finish and a watertight gasket, they ensure a weather-resistant installation. Their detachable cover simplifies routine maintenance and facilitates easy and convenient wire pulling in the future.

Product Parameter

Surface treatment	Hot dipped galvanised; electric galvanised
Finish	Zinc Plating
Material	AISI 316L
Model	3/4’’, 1’’
Technics	Casting
Feature	Malleable cover, fire resistant gaskets, stainless steel screws
Weight	0.935kg/1.14kg/
