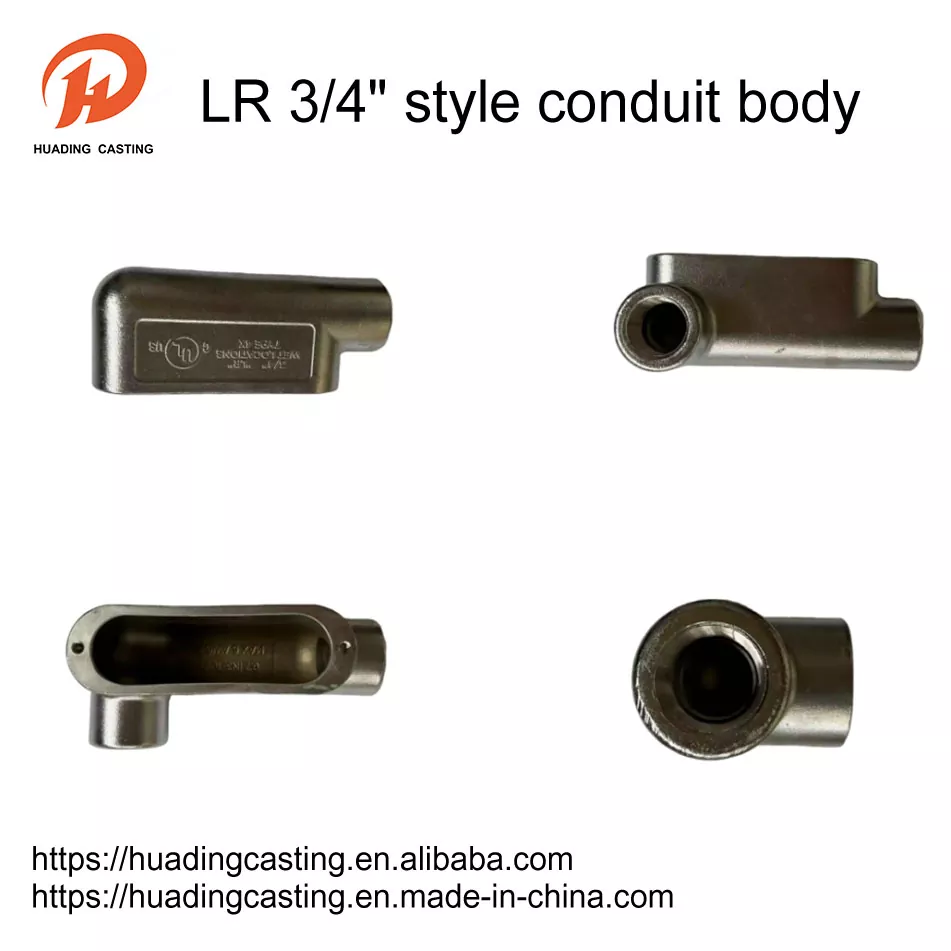

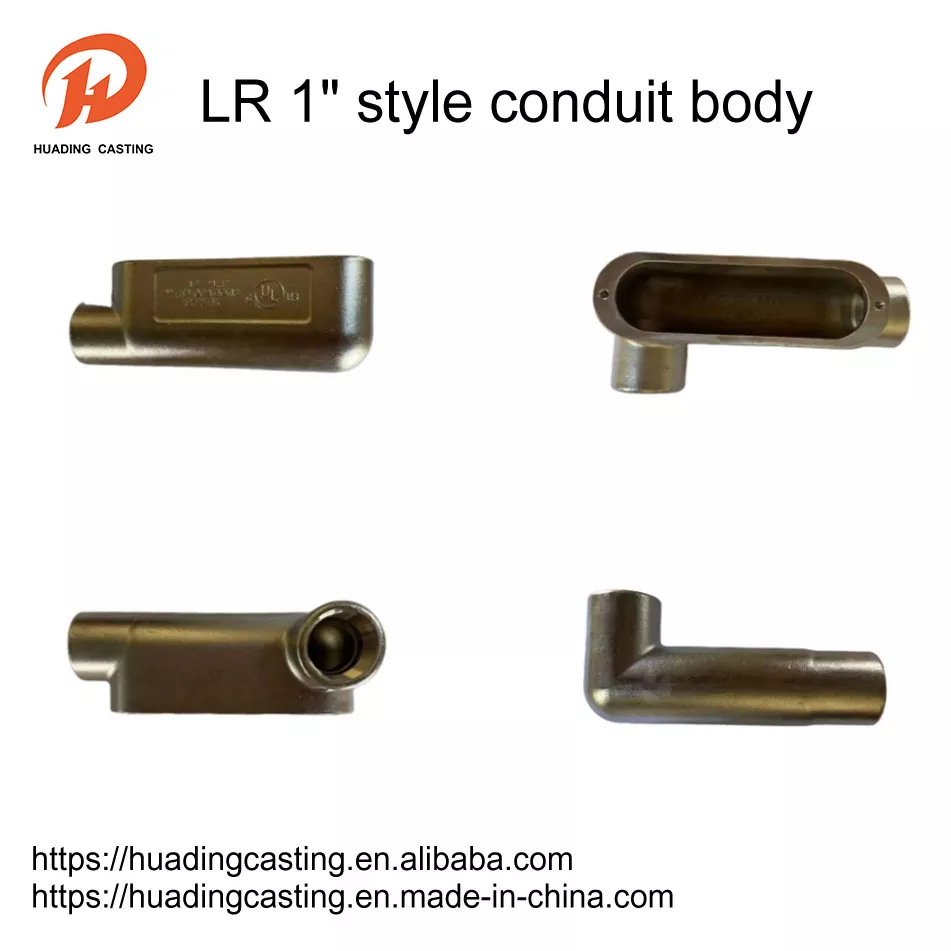

LR Style Conduit Body

LR style conduit body serves as connectors for threaded conduits when the electrical pathway alters its direction. They feature detachable gasketed covers that ensure a waterproof seal while providing convenient access for additional wire installation, inspection, and routine maintenance. These conduit bodies can house pipes ranging in diameter from 3/4" to 2" and are constructed from AISI316L stainless steel.

Send Inquiry

Product Description

Application:

LR style conduit body is affixed to threaded rigid or EMT conduits whenever a directional change is necessary. The removable cover and gasket facilitate easy wire pulling. They are frequently utilized as cost-effective convenience boxes when additional wire space is required.

Advantages:

LR style conduit bodies offer time and cost savings by avoiding the expense of bending large conduits to alter their direction. They enable installers to achieve smooth wire bends effortlessly. With a powder-coated finish and a watertight gasket, they ensure a weather-resistant installation. The removable cover design simplifies routine maintenance and future wire installations, providing ease and convenience.

Product Parameter

Surface treatment	Hot dipped galvanised; electric galvanised
Finish	Zinc Plating
Material	AISI 316L
Model	3/4’’, 1’’
Technics	Casting
Feature	Malleable cover, fire resistant gaskets, stainless steel screws
Weight	0.94kg/1.135kg/
