One-Piece Inner Thread Connection Ball Valves

One-Piece Inner Thread Connection Ball Valves are essential components in modern industrial fluid control systems, prized for their compact design and reliable sealing performance. These One-Piece Inner Thread Connection Ball Valves feature a unified body structure that significantly reduces potential leak paths, making them especially suitable for high-pressure and high-safety environments. The inner thread connection allows for quick, secure installation onto standard piping without extra adapters, saving time and cost during maintenance. Constructed from durable materials like stainless steel or brass, One-Piece Inner Thread Connection Ball Valves offer superior corrosion resistance and extended service life. Their blow-out proof stem and reduced bore design further enhance operational safety and flow precision. Widely applied in chemical, water treatment, and oil & gas industries, these valves consistently perform under demanding conditions. Available in pressure ratings such as PN16 and PN63, they comply with international standards including NPT, BSPT, DIN2999, and ISO228, ensuring global compatibility and reliability.

Send Inquiry

Product Description

Name:One-Piece Inner Thread Connection Ball Valve

Material: Following Table

MOQ: 100 pcs

Package: Inner packing of thickened bubble bag and outer packing of carton, Or sea-worthy pallet transportation

Shipment: DHL, UPS, FedEx, LCL by sea etc.

Tolerance:Precision CNC machining, tolerance ±0.01mm

Inspection:German CMM full inspection, zero defect

OEM & ODM: OEM & ODM accepted, fast sample making

Time:Strict quality control, on-time delivery

Service:Wide material selection for custom parts

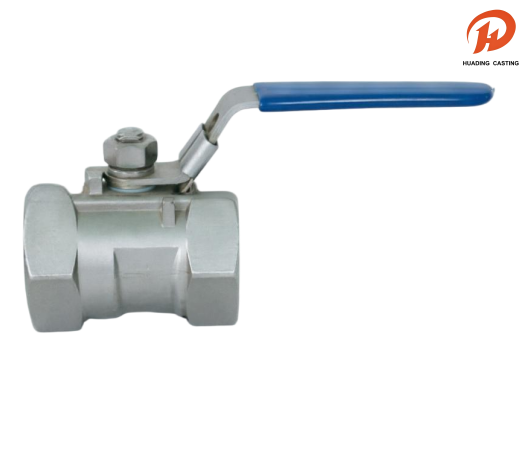

One-Piece Inner Thread Connection Ball Valve

One-Piece Inner Thread Ball Valves deliver compact, leak-tight performance for industrial fluid systems. Trusted in chemical processing, water treatment, and oil & gas, these valves handle tough conditions reliably. Offered in PN16/PN63 ratings with NPT/BSPT threads, they comply with global standards for seamless integration into international piping networks, providing consistent, durable operation across demanding applications.

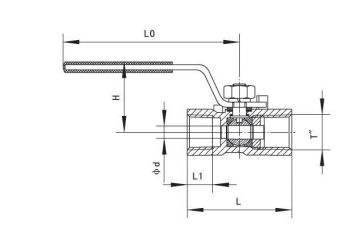

Ball Valve Technical Characters and Typical Drawing

NOMINAL DIA. (mm)	PIPETHREAD	DIMENSION (mm)
		d	L	L1	H	L0
8	1/4	4.6	39	9.5	31	62
10	3/8	6.8	44	10.5	35.5	62.5
15	1/2	9.2	56.5	14	40	96
20	3/4	12.5	59	15	44	96
25	1	16	71	18	50	101
32	1 1/4	20	78	19	54	101
40	1 1/2	25	83	20	70	135
50	2	32	100	23	75	135

Ball Valve Material List

PART NAME	MATERIAL
BODY	WCB CF8 CF8M
CAP	WCB CF8 CF8M
HANDLE	SS304
BALL	SS304 SS304 SS316
SEAT	PTFE
STEM	SS304 SS304 SS316
PACKING WASHER	PTFE
GASKET	PTFE
THRUST WASHER	PTFE
NUT	SS304
SPRING WASHER	SS304
LOCKER	SS304
HANDLE	SS304
COVER	PLASTIC
