Premium Gate Valve

Name: Premium Gate Valve

Material: 304 Stainless Steel

MOQ: 10 pcs

Package: Inner packing of thickened bubble bag and outer packing of carton, Or sea-worthy pallet transportation

Shipment: DHL, UPS, FedEx, LCL by sea etc.

Tolerance:Precision CNC machining, tolerance ±0.01mm

Inspection:German CMM full inspection, zero defect

OEM & ODM: OEM & ODM accepted, fast sample making

Time:Strict quality control, on-time delivery

Service:Wide material selection for custom parts

Gate valves are fundamental components in fluid control systems, widely recognized for their robust design and exceptional isolation capabilities. Below is a detailed breakdown of why they remain a top choice for engineers and procurement specialists across various industries.

Core Advantages of Gate Valves

1. Minimal Fluid Resistance & Energy Efficiency

The internal design of a gate valve features a straight-through flow path. When fully open, the gate completely retracts into the valve bonnet, allowing the medium to flow in a straight line without any directional changes. This results in extremely low fluid resistance and negligible pressure drop (typically with a resistance coefficient of just 0.08 to 0.12). This characteristic is crucial for reducing pumping energy consumption and lowering operational costs in large-flow systems.

2. Bi-directional Flow Capability

Gate valves are built with symmetrical channels, meaning the medium can flow from either direction without compromising performance. This bi-directional sealing capability offers exceptional flexibility in pipeline layout and installation, making them ideal for complex systems where flow direction might change or needs to be reversed.

3. Superior Sealing & Low Erosion

When a gate valve is in the fully open position, the sealing surfaces are completely isolated from the high-velocity flowing medium, which significantly minimizes erosion and wear. Additionally, many wedge-type gate valves utilize a self-tightening seal mechanism. This means the sealing force actually increases as the pipeline pressure rises, ensuring a reliable, leak-free isolation even in demanding high-pressure environments.

4. Compact Face-to-Face Length

Compared to other valve types like globe valves, gate valves have a relatively short structural length (face-to-face dimension). This space-saving design reduces the footprint along the pipeline axis, making them much easier to integrate into dense and complex piping networks.

5. Versatile Material & Size Adaptability

Gate valves are highly scalable and versatile. They are available in sizes ranging from small instrument lines (DN10) to massive industrial pipelines (DN2000 and above). Furthermore, they can be manufactured from a wide array of materials—including cast iron, carbon steel, stainless steel, and exotic alloys—ensuring compatibility with diverse media such as water, steam, oil, gas, and mildly corrosive chemicals.

Key Application Selling Points

1. The Ultimate Isolation Solution for Main Pipelines

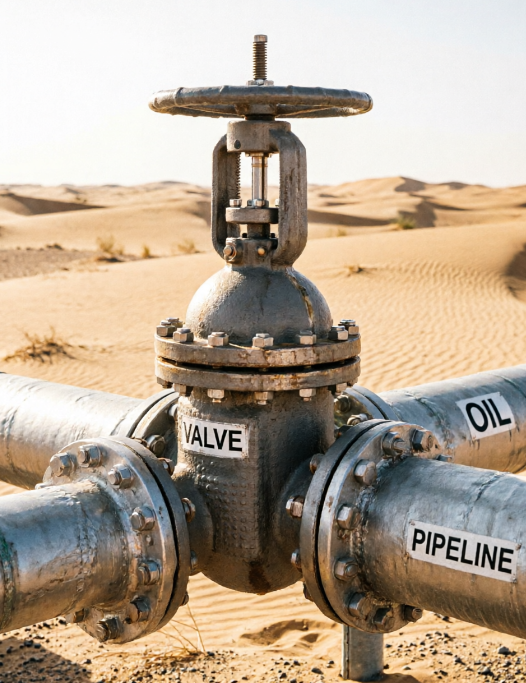

Gate valves are the industry standard for long-distance transmission pipelines carrying water, oil, or gas. Their full-bore design ensures zero obstruction to flow, which is absolutely critical for pigging operations (pipeline cleaning and inspection) and for maintaining maximum throughput efficiency.

2. Cost-Effective for Large Diameter Systems

For large-diameter applications (typically DN50 and above), gate valves offer a highly economical solution compared to globe or ball valves. Their simple yet durable internal structure translates to a lower initial procurement cost and a longer service life with proper maintenance, providing an excellent lifecycle cost ratio.

3. Reliable Performance in Harsh Environments

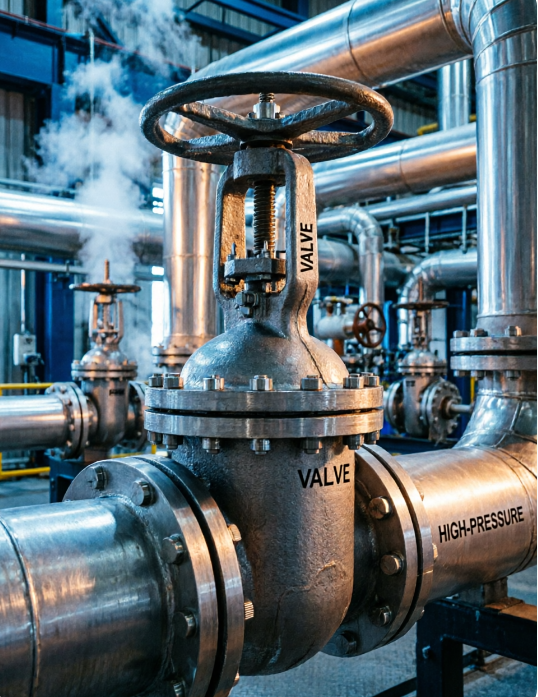

Featuring robust designs such as the OS&Y (Outside Screw and Yoke) configuration, gate valves protect the stem threads from direct contact with the medium. This ensures smooth and reliable operation even in high-temperature or corrosive settings, making them indispensable in petroleum refining, chemical processing, and power generation plants.

4. Ideal for Infrequent Operation

Gate valves are specifically engineered for "fully open" or "fully closed" service. They are the perfect choice for isolation duties where the valve status rarely changes. (Note: They are not recommended for throttling or flow regulation, as keeping the gate partially open can cause vibration and damage to the sealing surfaces.)

5. Easy Maintenance & Long Service Life

The straightforward internal structure—typically consisting of a body, bonnet, gate, stem, and seats—makes gate valves relatively easy to inspect and maintain. Many industrial models feature renewable seat rings, allowing for cost-effective repairs and extending the valve's operational lifespan to 15-20 years or more in intermittent service applications.

Technical Specifications (Typical)：

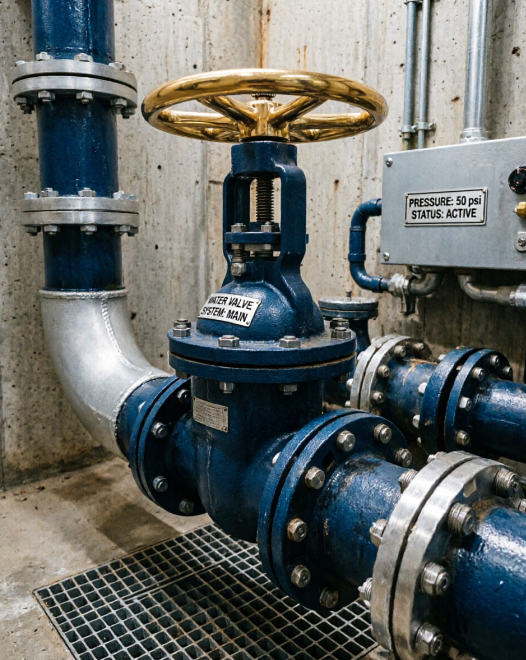

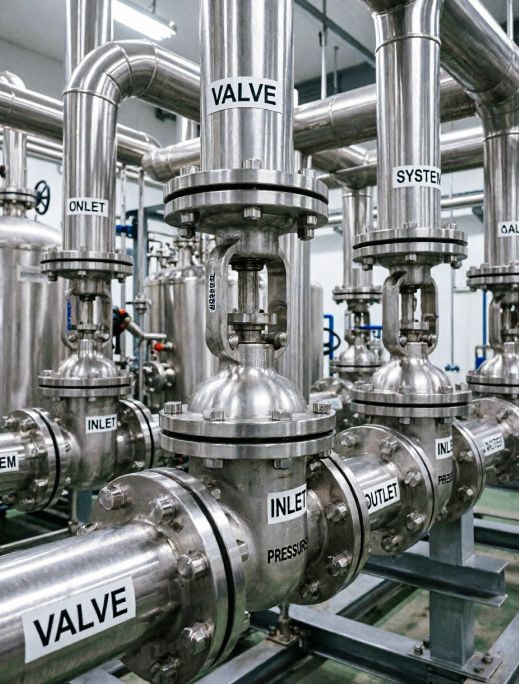

Application scenarios：

CERTIFICATION:GB/T 19001-2016/ISO 9001-2015

FAQ

What is your MOQ?

It is according to you, usually it is 1000 units.We accept small quantity.

What is the delivery time for the sample?

It's a according to the sample,usually it is 7 days.

What is the rang of the weight you have casted?

The weight we can cast from 0.007kg to 130kg.

What is your term of payment?

30% prepayment and the remaining 70% against bill of lading for shipment.

Do you provide sample? Free or charge?

Yes, we provide the sample, but the delivery costs and mould costs need to be borne by you.

Are you a manufacturer or a trading company?

We are a professional manufacturer with over 26 years' export experience for designing and producing metal castings.
