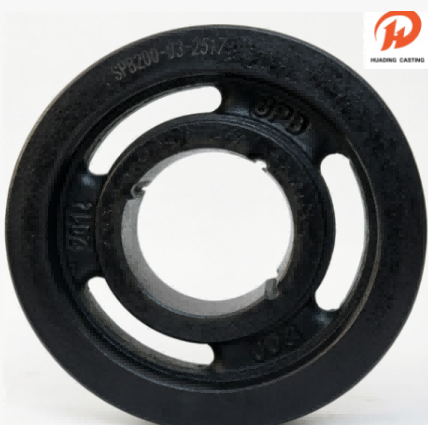

SPB200-03-2517 Casting Iron Pulleys

Name: SPB200-03-2517 Casting Iron Pulleys

Material: Cast Iron

MOQ: 10 pcs

Package: Inner packing of thickened bubble bag and outer packing of carton, Or sea-worthy pallet transportation

Shipment: DHL, UPS, FedEx, LCL by sea etc.

Tolerance:Precision CNC machining, tolerance ±0.01mm

Inspection:German CMM full inspection, zero defect

OEM & ODM: OEM & ODM accepted, fast sample making

Time:Strict quality control, on-time delivery

Service:Wide material selection for custom parts

SPB200-03-2517 Casting Iron Pulleys

Whether upgrading electric motors, industrial fans, or air compressors, these SPB200-03-2517 Casting Iron Pulleys deliver smooth and reliable operation. Their robust Casting Iron construction guarantees long service life even in heavy-duty environments. Choosing SPB200-03-2517 Casting Iron Pulleys ensures optimal mechanical efficiency and reduced maintenance downtime. Trust these Casting Iron components to keep your critical drive systems running at peak performance.

Technical Parameters

Parameter Category	Specific Value / Description
Model	SPB200-03-2517
Compatible Belt Type	SPB Type Narrow V-Belt (European Standard ISO 4183)
Pitch Circle Diameter	200 mm
Outside Diameter (O.D.)	Approx. 203.5 mm
Groove Profile	SPB Type (Top width approx. 16.6 mm, bottom width approx. 13.5 mm)
Number of Grooves	3 Grooves
Groove Spacing	25.5 mm ± 0.3 mm
First Groove Offset	Approx. 14.0 mm
Taper Bush Type	2517 Type
Max Bore Range	16 mm - 48 mm (Supports keyway connection)
Material	Premium Cast Iron (Gray Cast Iron / Ductile Iron)
Surface Treatment	Black Phosphating / Powder Coating (Rust & corrosion prevention)
Max Power Rating	Approx. 15 kW - 22 kW (Depends on motor RPM and speed ratio)
Estimated Weight	Approx. 6.5 kg - 7.5 kg
Max Safe Line Speed	≤ 35 m/s
Balance Grade	Static Balance ≤ G6.3
Application Scenarios	Power transmission systems for motors, fans, compressors, conveyors, etc.

CERTIFICATION:GB/T 19001-2016/ISO 9001:2015

Our CNC Machining Capability

Packing and Delivery

FAQ

What is your MOQ?

It is according to you, usually it is 1000 units.We accept small quantity.

What is the delivery time for the sample?

It's a according to the sample,usually it is 7 days.

What is the rang of the weight you have casted?

The weight we can cast from 0.007kg to 130kg.

What is your term of payment?

30% prepayment and the remaining 70% against bill of lading for shipment.

Do you provide sample? Free or charge?

Yes, we provide the sample, but the delivery costs and mould costs need to be borne by you.

Are you a manufacturer or a trading company?

We are a professional manufacturer with over 26 years' export experience for designing and producing metal castings.
