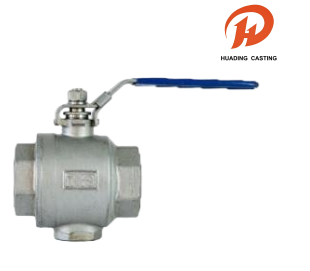

Two-Piece Inner Thread Connection Ball Valves

These Two-Piece Inner Thread Connection Ball Valves feature a robust investment casting body and a blow-out proof stem, ensuring safety and durability. Designed for versatility, the valves comply with multiple thread standards (NPT, BSPT, DIN 2999, ISO 228) and support the ISO 5211 direct-mounting of actuators. With a working pressure of 1000 PSI and adherence to strict testing standards like API 598, these Two-Piece Inner Thread Connection Ball Valves are built for high-performance applications.

Send Inquiry

Product Description

Name:Two-Piece Inner Thread Connection Ball Valves

Material: Following Table

MOQ: 100 pcs

Package: Inner packing of thickened bubble bag and outer packing of carton, Or sea-worthy pallet transportation

Shipment: DHL, UPS, FedEx, LCL by sea etc.

Tolerance:Precision CNC machining, tolerance ±0.01mm

Inspection:German CMM full inspection, zero defect

OEM & ODM: OEM & ODM accepted, fast sample making

Time:Strict quality control, on-time delivery

Service:Wide material selection for custom parts

Two-Piece Inner Thread Connection Ball Valves

These Two-Piece Inner Thread Connection Ball Valves comply with pipe thread standards including NPT, BSPT, DIN 2999, and ISO 228, and feature an ISO 5211 direct-mounting design for actuators along with a locking device. Rated for a working pressure of 1000 PSI (PN63) W.O.G, the Two-Piece Inner Thread Connection Ball Valves are rigorously tested according to API 598, GB/T 13927, and ISO 5208 standards to guarantee reliable performance in demanding applications.

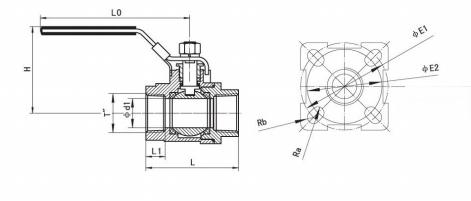

Ball Valves Technical Characters and Typical Drawing

NOMINAL	PIPE	DIMENSION
DIA. (mm)	THREAD	d1	L	L1	H	L0	Ra	Rb	E1	E2
8	1/4	9.2	46.8	10	47.8	80	R3	R3	Φ42	Φ36
10	3/8	12.5	52	12	52	80	R3	R3	Φ42	Φ36
15	1/2	15	59	13.5	56.5	100	R3	R3	Φ42	Φ36
20	3/4	20	65	14.5	58.5	100	R3	R3	Φ42	Φ36
25	1	25	76	16.5	74	148	R3	R3.5	Φ50	Φ42
32	1 1/4	32	90	19	79	148	R3	R3.5	Φ50	Φ42
40	1 1/2	38	101.5	19	92	190	R3.5	R4.5	Φ70	Φ50
50	2	50	120.5	22	103	190	R3.5	R4.5	Φ70	Φ50
65	2 1/2	65	157	28	118	280	R4.5	R5.5	Φ102	Φ70
80	3	80	176	32	118	280	R4.5	R5.5	Φ102	Φ70
100	4	100	212	32	144	280	R5.75	R6.75	Φ125	Φ102

Ball Valve Material List

PART NAME	MATERIAL
BODY	WCB CF8 CF8M
CAP	WCB CF8 CF8M
BALL	SS304 SS304 SS316
SEAT	PTFE
STEM	SS304 SS304 SS316
GLAND	SS304
PACKING	PTFE
GASKET	PTFE
WASHER	PTFE
NUT	SS304
SPRING WASHER	SS304
LOCKER	SS304
HANDLE	SS304
COVER	PLASTIC
