Products > Investment Casting > Investment Casting Part > Two-Piece Male-Female Thread Ball Valves
Products

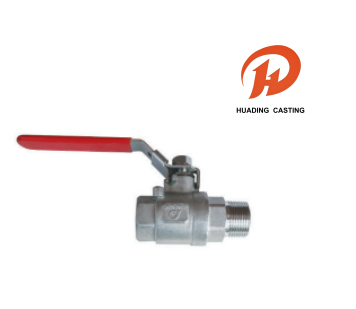

Two-Piece Male-Female Thread Ball Valves
Two-Piece Male-Female Thread Ball Valves are manufactured in accordance with pipe thread standards such as NPT, BSPT, DIN2999, and ISO228. Featuring a blow-out proof stem and a robust investment casting body, these valves operate at a working pressure of 1000 PSI (PN63) W.O.G. They are rigorously tested to API598, GB/T13927, and ISO5208 standards. Renowned for their exceptional stability and zero-leakage performance, they are highly favored across the industry.
Send Inquiry
Product Description
Name:Two-Piece Male-Female Thread Ball Valves
Material: Following Table
MOQ: 100 pcs
Package: Inner packing of thickened bubble bag and outer packing of carton, Or sea-worthy pallet transportation
Shipment: DHL, UPS, FedEx, LCL by sea etc.
Tolerance:Precision CNC machining, tolerance ±0.01mm
Inspection:German CMM full inspection, zero defect
OEM & ODM: OEM & ODM accepted, fast sample making
Time:Strict quality control, on-time delivery
Service:Wide material selection for custom parts
Two-Piece Male-Female Thread Ball Valves
Two-Piece Male-Female Thread Ball Valves offer unmatched versatility in industrial piping systems. Featuring a convenient combination of male and female threaded ends, they eliminate the need for extra adapters, streamlining installation and reducing potential leak points. Engineered with a robust two-piece structure, these valves ensure secure fluid isolation, precise flow control, and exceptional durability. Whether for water treatment or chemical processing, they deliver reliable performance and easy maintenance, making them an ideal choice for demanding applications.
Ball Valves Technical Characters and Typical Drawing
| NOMINAL | DIMENSION(MM) | ||||||
| DIA. (mm) | L | L0 | L1 | L2 | d | d1 | H |
| 1/4" | 62.5 | 81 | 10.6 | 10 | 9.2 | 7.5 | 47.8 |
| 3/8" | 63.5 | 81 | 11.2 | 12 | 12.5 | 8.5 | 52 |
| 1/2" | 74 | 100 | 14.7 | 13.5 | 15 | 12.5 | 56.5 |
| 3/4" | 82 | 100 | 16.2 | 16 | 20 | 17.5 | 58.5 |
| 1" | 98.5 | 148 | 19 | 16.5 | 25 | 23.6 | 74 |
| 1 1/4" | 112 | 148 | 21.5 | 19 | 32 | 30.8 | 78 |
| 1 1/2" | 126 | 190 | 21.5 | 19 | 38 | 36.6 | 92 |
| 2" | 151 | 190 | 25.8 | 22 | 50 | 47.5 | 103 |
| 2 1/2" | 175 | 280 | 30 | 30 | 65 | 63 | 118 |
| 3" | 191 | 280 | 32 | 32 | 80 | 77 | 127 |
Ball Valves Materials
| PART NAME | MATERIAL |
| BODY | WCB CF8 CF8M |
| CAP | WCB CF8 CF8M |
| BALL | SS304 SS304 SS316 |
| SEAT | PTFE |
| STEM | SS304 SS304 SS316 |
| GLAND | SS304 |
| PACKING | PTFE |
| GASKET | PTFE |
| WASHER | PTFE |
| NUT | SS304 |
| SPRING WASHER | SS304 |
| LOCKER | SS304 |
| HANDLE | SS304 |
| COVER | PLASTIC |
Information About Us
| Company |
manufacturer (more than 20 years' experienced factory) exporter (export from 2008 year) |
| Main export markets |
• Eastern Europe • Western Europe • North America • Mid East Africa • Central/South America • Asia • Australia • Long-term cooperated customer:America,Korea，Germany,Spain,Australia etc. |
| Company advantage |
• Guarantee/warranty • Product feature • Product performance • Prompt delivery • Quality approval • Service • Small order accepted |
CERTIFICATION:GB/T 19001-2016/ISO 9001:2015
Our CNC Machining Capability
Packing and Delivery
FAQ
What is your MOQ?
It is according to you, usually it is 1000 units.We accept small quantity.
What is the delivery time for the sample?
It's a according to the sample,usually it is 7 days.
What is the rang of the weight you have casted?
The weight we can cast from 0.007kg to 130kg.
What is your term of payment?
30% prepayment and the remaining 70% against bill of lading for shipment.
Do you provide sample? Free or charge?
Yes, we provide the sample, but the delivery costs and mould costs need to be borne by you.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 26 years' export experience for designing and producing metal castings.
