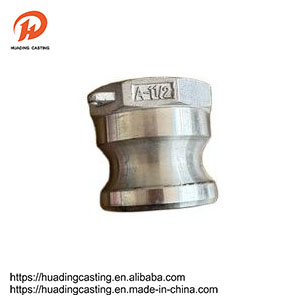

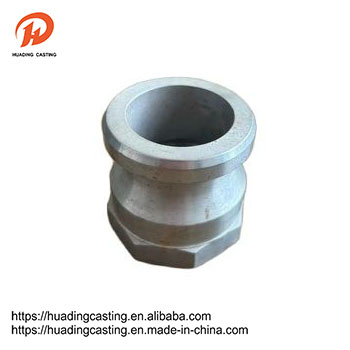

Stainless Steel Camlock Coupling

Stainless steel camlock coupling is produced according to standard A-A-59326(Mil-C-27487) or EN14420-7(DIN2828), also known as Cam &groove couplings, they are mainly composed of the male adapter and female coupler. Camlock coupling is easy to install. During the process of installation, no tools are required and hand pressure is enough. Stainless steel camlock is suitable for transporting acidic, alkaline, corrosive substances, seawater, wastewater, hydraulic oil, etc.

Send Inquiry

Product Description

The use and connection way of cam and groove couplings: Type A camlock can usually be used with D type, C type, DC type. ( Dust Cap ) To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Key Features and Benefits:

· Material Durability: Material Durability: Crafted from stainless steel 316 or 304, these couplings are resistant to corrosion, making them ideal for transporting acidic, alkaline, and corrosive substances, as well as seawater, wastewater, hydraulic oil, and more.

· Quick Connection: The unique cam and groove design allows for swift and effortless connection and disconnection, enhancing operational efficiency.

· Versatile Compatibility: Type A camlock couplings seamlessly integrate with D type, C type, and DC type fittings, along with dust caps, for a wide range of applications.

· High-Quality Seals: Equipped with Buna-N, EPDM, PTFE, or food-grade silicone gaskets, these couplings ensure leak-proof connections, safeguarding against fluid loss and contamination.

· Standardized Threads: Available with BSP, BSPT, NPT, G (ISO 228.1), and R (DIN2999) threads, ensuring compatibility with various piping systems.

Detailed Specifications:

· Body Material: Stainless steel 316 or 304

· Handles & Pins: Stainless steel for added durability

· Gaskets: Choice of Buna-N, EPDM, PTFE, or food-grade silicone

· Thread Types: BSP, BSPT, NPT, G (ISO 228.1), R (DIN2999)

· Sizes: Ranging from 1/2″ to 8″, catering to various flow requirements

· Working Pressure: 50-250 Psi, depending on size and temperature

· Manufacturing Method: Precision casting ensures precise dimensions and superior quality

Industry Applications:

Stainless steel camlock couplings find extensive use across diverse industries, including:

· Petroleum & Mining: Safe and reliable transportation of fuels, lubricants, and other petroleum products.

· Municipal & Construction: Efficient water supply, irrigation, and wastewater management systems.

· Chemicals: Secure handling and storage of corrosive and hazardous chemicals.

· Agriculture: Irrigation systems, ensuring uniform water distribution for optimal crop growth.

· Hydraulic Fluids & Coolants: Maintaining fluid integrity in hydraulic systems and machinery.

With its robust construction, ease of use, and wide range of applications, the stainless steel camlock coupling is a must-have for any industry requiring reliable and efficient fluid transfer solutions.

Product Parameter

Size	1/2’’	3/4’’	1’’	1-1/4’’	1-1/2’’	2’’	2-1/2’’	3’’	4’’	5’’	6’’
A	26	31	38	47	54	65	79	94	121	154	181
B	37	35	43	52	51	58	73	67	66	80	85
C	15	23	26	31	38	48	60	76	103	128	155
Weight/Kg	0.06	0.076	0.117	0.2	0.275	0.343	0.723	0.64	1.01	1.9	1.8
To equip with“B”OR“D”OR“DC”
