Welded Steel Type Cranked Link Mill Chains

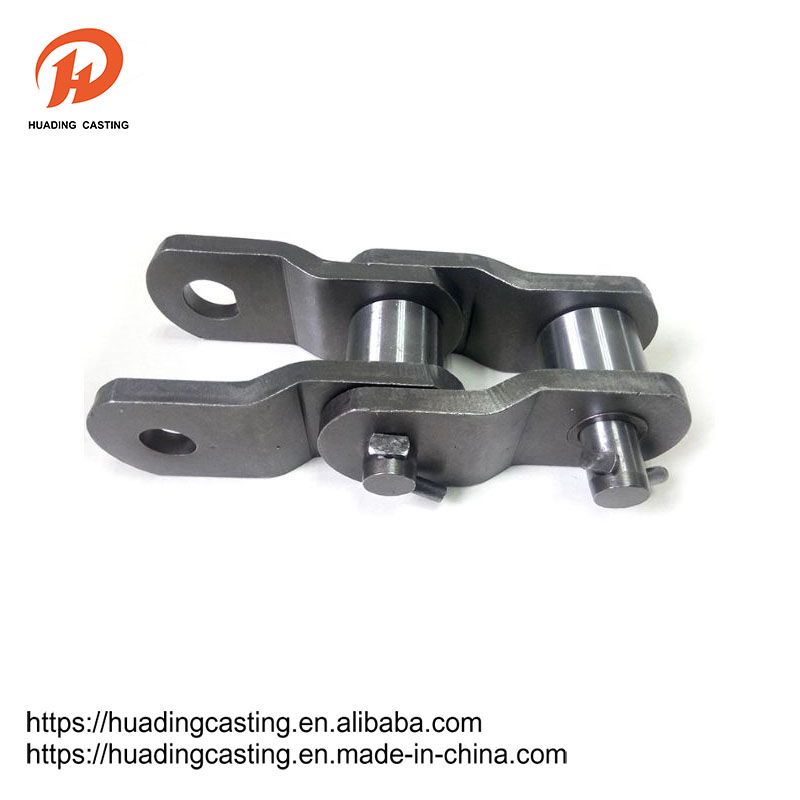

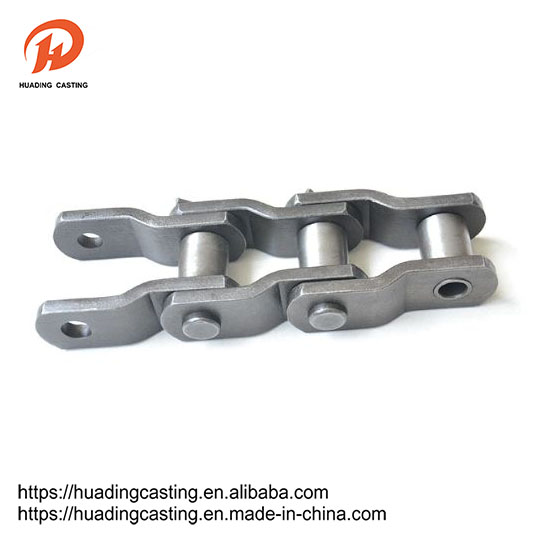

Welded steel type cranked link mill chains are designed for conveying strong impact, wear and tear of the material, can be used in the dust environment, mainly used for grain scraping, soybean meal scraping, industrial bulk conveying, wood processing and so on. It can withstand lasting wear and high impact.

Send Inquiry

Product Description

Product Details: Huading Metals' Welded steel type cranked link mill chains

Material Composition:

Constructed from premium-grade alloy steel, Huading Metals' welded steel cranked link mill chains offer superior strength and durability.

Plate Bore Processing:

Utilizing precision technology, the bores within the plates are meticulously punched and compressed to ensure tight tolerances and optimal fit between components.

Component Machining:

The pins, bushes, and rollers undergo precision machining by advanced automatic and grinding equipment, resulting in precise dimensional accuracy and smooth surface finishes.

Heat Treatment Process:

After machining, the components are subjected to a series of heat treatments:

· Carburization for increased surface hardness

· Carbon and nitrogen shielding in a mesh belt furnace for corrosion resistance

· Surface blasting for improved surface texture

Assembly Process:

· Internal holes are precisely positioned to achieve impeccable assembly precision

· Pressure-spun riveting techniques are employed to securely connect links, enhancing overall chain strength and reliability

Overall Performance:

The combination of high-quality materials, precise manufacturing processes, and rigorous quality control ensures that Huading Metals' Welded steel type cranked link mill chains deliver exceptional performance, durability, and reliability in a wide range of industrial and mechanical applications.

Product Parameter

ANSI CHAIN NO.	Pith	Bush diameter	Inner widch for sprocket contact	Pin diameter	Pin length		Plate depth	Plate thick-ness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T	Q min	Qo	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/LB	kN	Kg/m
	66.27	22.9	28.40	12.78	73.0	79.3	28.4	6.4	93.4/1227 106 .8/24273	102.7 117.5	6.20
	78.10	31.5	31.8	14.35	80.0	86	31.8	6.4	100.1/22750 131.2/29818	110.1 144.3	7.98
	152.4	37.1	41.20	19.13	103	111	38.1	9.7	169/38409 224.6/51045	185.9 247.0	10.56
	152.4	32	46.7	19.13	107.7	115.5	38.1	9.7	169.0/38409 224.6/51045	185.9 247.0	10.40
	120.9	37.1	57.2	19.13	116.8	124.5	38.1	9.7	169.0/38409 224.6/51045	185.9 247.0	12.72
	101.6	37.1	41.2	19.13	103	110	38.1	9.7	169.0/38409 224.6/51045	185.9 247.0	12.38
	103.2	41.7	41.2	22.3	131.6	133	50.8	12.7	275.8/62682 355.9/80886	303.3 391.4	19.68
	153.67	44.7	76.2	25.48	151.0	162	50.8	12.7	275.8/62682 378.1/85932	303.3 415.9	20.00
